PenGauge - Ultrasonic Thickness Gauge $650.00
PenGauge

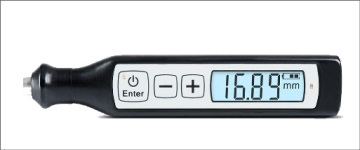

PenGauge - Ultrasonic Thickness Gauge

Description

• World smallest & lightest thickness gauge

• Easy to use with just three keys

• Throu-paint / coating capability

• Bluetooth connection to your Smartphone

• A-scan capability on iPhone & Android

Special Features

• Single-hand operation

• Automatic coupling indication

• Automatic timed shut-off

• Easy velocity & thickness calibration

• User selectable imperial or metric units

Specification

Measuring range:

0.03 to 6 inches*

0.8 to 150 mm*

Weight:

1.4 ounces

40 grams

Safety rated

IP65

IP65

Operating temperature:

-220F to 1220F

-30 0C to +50 0C

Continuous operation:

up to 16 hours**

up to 16 hours**

Displayed Resolution:

0.001 up to 9.999 inches, 0.01 above

0,01 up to 99,99 mm
0.1 above

Physical size:

5 x 1 x 0.6 inches

125 x 25 x 15 mm



* Material & operation dependent   ** operation mode dependent

Free Software

• Real-time digital values

• A-Scans

• Thickness profile (B-Scan)

• Customized measurement gates

• 2D value map data acquisition

• Saving results as image and raw data (A-Scans)

• Extendable material library

Delivery Kit

• Instrument with a built-in rechargeable battery

• Single crystal transducer 4MHz, = 0.24 inch / 0.6mm

• Power adapter & USB-cable

• Finger lanyard

• Calibration sample

• Сouplant

• Hard shell carry case

download PDF



Qty



This product was added to our catalog on Wednesday 15 November, 2017.
