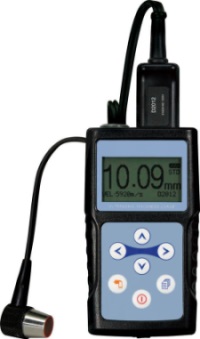

ULTRASONIC THICKNESS GAUGE KT-100D/200D SERIES ECHO-ECHO
Features
The Through-Coating thickness measurement (E-E)
Pocket Size, easy to operate
Automatic Probe Zero calibration
Automatic probe identification
Measuring Range: E-E: 4-25mm T-E: 0.65-400mm
(Range depends on probe-material combination)
Memory: 5000 readings with location number (KT-200D)
Data output: USB to PC (KT-200D)
Three measurement modes: T-E, E-E, Scan
9 material velocities are stored for selection,
Or input the new velocity manual
Technical Specification
|
Specification
|
KT-100D
|
KT-200D
|
|
Measurement mode
|
Transmit-echo
|
-Standard measurement: For Normal thickness measurement.
-Minimum measurement: For curved surface
-Differential measurement: Displays the difference from the actual thickness
-measurement and a user entered reference value Average measurement:
2-9 point selectable
-Limit measurement: Min. Max setting and alarm
|
√
|
√
|
|
Echo-Echo
|
The metal wall thickness is accurately and quickly measured in spite of surface coating
|
√
|
√
|
|
Scan
|
Thickness value at 10 measurements per second while also display actual thickness (Ideal for high temp. thickness readings)
|
√
|
√
|
|
Probe identify
|
Auto
|
√
|
√
|
|
Probe zero
|
Auto at power up and continuously during the measurement
|
√
|
√
|
|
Gain adjust
|
Auto gain adjustment
Manual gain adjustment, low, standard and high
|
√
|
√
|
|
Memory
|
5000 groups
|
--
|
√
|
|
Output
|
USB to PC
|
--
|
√
|
|
Measuring Range
|
E-E: 4-25mm
T-E: 0.65-400mm (range depends on probe-material combination)
|
√
|
√
|
|
Resolution
|
0.01mm (0.001 inch) for thickness up to 99.99mm
0.1mm (0.01 inch) for thickness above 99.99mm
|
√
|
√
|
|
Information Display
|
Measurement reading, Probe type, Velocity,
Measurement mode, measurement symbol, Battery
|
√
|
√
|
|
Velocity range
|
9 material velocities are stored for selection, or entre the new velocity manually ( 1000 m/s-9999 m/s)
|
√
|
√
|
|
Vel. measurement
|
Simply calibrate when a material`s velocity is unknown
|
√
|
√
|
|
Display
|
128 x 64 graphics LCD monochrome
|
√
|
√
|
|
Battery Type
|
2 AAA alkaline
|
√
|
√
|
|
Battery life
|
Up to 50 hours (without Backlight)
|
√
|
√
|
|
Shut off
|
Auto, 2 Min., 5 Min., or never shut off delectable
|
√
|
√
|
|
Work. Temperature
|
-20℃-50℃
|
√
|
√
|
|
Unit
|
Mm/inch
|
√
|
√
|
|
Dimensions
|
115mm x 64mm x 27mm
|
√
|
√
|
|
Weight
|
220g
|
√
|
√
|
Specification for Transducers
|
Model
|
Frequency
|
Measuring range
|
Diameter
|
Temperature
|
|
D5301
|
5.0MHz
|
T-E 2-160mm
E-E 4-25mm
|
Ø 10.8
|
<60℃
|
|
D5008
|
5.0MHz
|
0.8-300mm
|
Ø 10.8
|
<60℃
|
|
D5113
|
5.0MHz
|
3.0-200mm
|
Ø13
|
<350℃
|
|
D7006
|
7.5MHz
|
0.7-50mm
|
Ø8.5
|
<60℃
|
|
D7004
|
10.0MHz
|
0.65-20mm
|
Ø5
|
<60℃
|
|
D2012
|
2.0MHz
|
2.0-400.0
|
Ø16.3
|
<60℃
|
Standard Delivery
Main unit
Standard 5MHz transducer D5301
Operation manual
Two AAA batteries
Buit-in calibration block 4mm
Carrying case
Couplant 40 Oz
Certificates
Software and cable (KT-200D)
|
