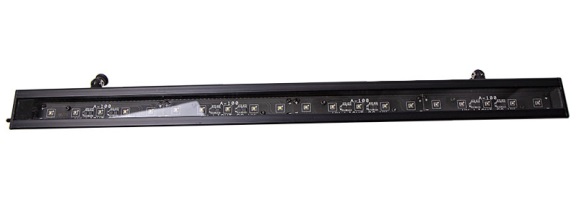

Enigma365 UV LED XL
- High UVA output @ 365 nm
- Fixed mount, waterproof (IP 65)
- Effective in normal lighting conditions
- Supplied with operating and safety manual
UV irradiance and footprint
| Distance from UV LED |
Irradiance level (uW/cm2) |
Area |
| 38 cm / 15″ |
1,000 uW/cm2 |
30 cm x 20 cm |
| 38 cm / 15″ |
300 uW/cm2 |
80 cm x 40 cm |
| 38 cm / 15″ |
100 uW/cm2 |
120 cm x 50 cm |
| 38 cm / 15″ |
50 uW/cm2 |
150 cm x 50 cm |
| 120 cm / 48″ |
100 uW/cm2 |
110 cm x 110 cm |
| 120 cm / 48″ |
50 uW/cm2 |
150 cm x 150 cm |
| UV source |
20 x 365 nm LED chips running at 2 W per chip |
| UV source lifetime |
25,000 hours (estimated) |
| Warm up |
Instant |
| Wavelength range |
360 nm – 370 nm (peak output 365 nm) |
| Reflector material |
Anodised aluminium |
| Rating |
IP 65 |
| Construction material (body) |
Aluminium |
Voltage 100-240 V , 50-60 Hz.
|
