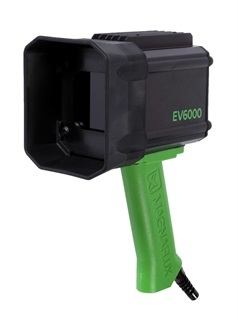

Hand-Held LED UV Lamp

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections. This UV lamps utilizes the latest LED technology from Magnaflux, building on 5 years of LED UV lamp designs and over 85 years of non-destructive testing experience.

UV-A radiation is generated by special high-performance LEDs and focused through custom-designed optics to provide the maximum irradiated area available from any hand-held lamp on the market. The EV6000 features a uniform beam with no hot-spots, with a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry. Custom-designed optics provide intense and even coverage of UV-A for clearly visible indications, and an integrated filter ensures minimal visible light emission.  Durability is enhanced with advanced cooling that needs no fan, and a lens that does not solarize. The EV6000 boasts low energy consumption, is environmentally sound, and certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile.

Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

The handheld EV6000 is also available as inspection kits for fluorescent penetrant testing or fluorescent magnetic particle inspections and come with Magnaflux aerosol consumables:
