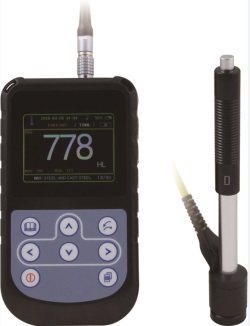

Multi-languages type Hardness Tester KH-100Plus

Features

●Large colorful TFT display 320×240

● Measuring range 200～900HL

● 10 Languages optional

● High accuracy and repeatability ±0.5% at 800HL

● Conform to ASTM A 956

● Impact Device D is in standard delivery, optional Impact Device DC, DL, D+15, C and G for

  different application

● Based on HL value, conversion to HRB, HRC, HV, HB, HS and Tensile strength is available

● 360° full angle measurement

● Memory of 10,000 average readings in 100 files, data transfer without software

● Multi-languages and and Multi-national hardness standards

● Data transfer to PC through USB without software or optional Bluetooth printer

● Auto shut down after two minutes without operation for saving power

Stadard Delvery

● Main Unit

● Impact device D

● Certified test block with HLD value

● Cable

● Cleaning brush

● Small supporting ring

● Operating manual

● Carrying case

   ● Calibration Certificate

Technical Specification:

Measurement range               200HL～900HL See table 1

Hardness parameter              HL, HRB, HRC, HV, HB, HS and Tensile strength

Tensile strength UTS range

(steel only)                           370～2000 (≈106N/mm)

Optional impact device           D, DC, DL, D+15, C and G

Materials                               Steel & Cast steel, Alloy tool steel, Stainless steel, Grey cast iron,

                                            Spheroidal iron, Cast aluminum, Brass, Bronze and Copper

Accuracy & Repeatability        +/-0.5% when HL=800

Memory                                10,000 average readings

Data output                          USB

Requirement

Thickness                           Minimum 3mm or more (10mm for Impact device G)

Weight                               5Kg or more (Need Solid support 2-5Kg, Need coupled ＜2Kg)

Roughness                         ≤Ra10

Test point                             Radius (convex/concave) Rmin=30mm or more

                                            (Need support ring＜30mm)

                                            5mm or more from edge of the sample

Display                                 Large colorful TFT display 320×240

Power supply                         2PCS AAA battery

Operating temperature           -20℃～+50℃

Dimensions                           133mm（L）×75mm（W）×29mm（H）

Weight                                 0.26kg (including batteries)

Table 1 for Impact device D
