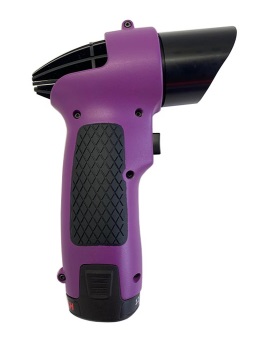

Midas Mini UV LED Torch
High-performance UV-A inspection torch for professional UV fluorescent inspection applications including detection of cracks, leaks, hydrocarbons, clearcoats, security markings and more.
-
High UV-A output at 365nm
-
> 1,200 uW/cm2 at 38cm (15″)
-
Bosch 12V battery technology
-
Flashes when the battery needs replacing
-
2 batteries, charger, UV specs and case
-
Conforms with RRES 90061, ASTM E3022 and Airbus AITM6-1001
A larger UV torch is also available, which has a wider beam spread, please see the Midas UV Torch.
Includes operating and safety manual, including maximum permissible exposure times for the skin and eyes to help ensure safe use and compliance with your legal obligations
UV-A irradiance levels at 38cm (15″)
|
0mm (centre of beam)
|
1,238 uW/cm2 (LEDs will flash when output drops below 650 uW/cm2 (roughly 2.5 hours)
|
|
100mm diameter
|
1,220 uW/cm2
|
|
200mm diameter
|
990 uW/cm2
|
|
300mm diameter
|
695 uW/cm2
|
|
400mm diameter
|
235 uW/cm2
|
|
500mm diameter
|
32 uW/cm2
|
OptiMinUV solution
OptiMinUV is the gold standard, which includes a UV meter for process control, UV safety products and information and training to ensure safe use and compliance with your legal obligations. It provides peace of mind that you’ve got performance, risk assessment and control covered, along with the confidence and acceptance of your process by the workforce.
UV meters for process control
UV safety products
-
UV Spectacles (clear) to protect the eyes from UV light
-
UV Overspectacles (clear) to protect the eyes from UV light
-
UV Spectacles (amber) to protect the eyes from UV light and reduce glare
-
UV Hazard Warnings to indicate the presence of artificial UV light
UV safety information and training
What’s included
Power supply requirement
Battery charger power supply requirement
Specification
|
UV source
|
3 x UV-A LEDs
|
|
Life span
|
25,000 hours
|
|
Peak wavelength
|
365 nm
|
|
Weight of UV torch
|
0.446 Kg
|
|
Weight of case with torch and accessories
|
4.044 Kg
|
|
