PH Tool Phased Array Calibration Block No.2 1 1/2"

Phased Array Calibration Block No.2 1 1/2" - Steel 1018	$1,372.41
PHT-B2-1

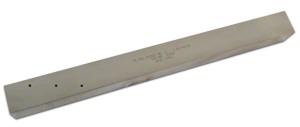

Phased Array Calibration Block No.2 1 1/2" - Steel 1018

This new Phased Array calibration block designed by PH Tool contains all of the required features on the ASME Sec V Art 4 Basic Calibration Block, yet spaces the holes out on a longer, narrower block. The block contains three holes at 1/8" diameter drilled through the 1.500" width, located at 1/4T, 1/2T, and 3/4T. It also contains two EDM notches at 2% deep x .010" wide x 1.500" long on opposite surfaces of one end.

Dimensions: 1.50" thick x 1.50" wide x 17.00" long
Alloy: 1018 Steel, Nickel-plated
In accordance with PH Tool Drawing No. 10239.

Qty

This product was added to our catalog on Saturday 23 July, 2016.
