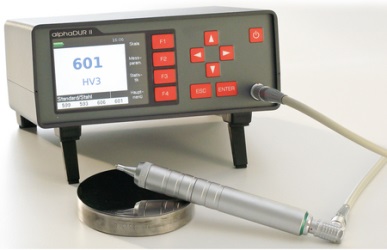

UCI Hardness Tester alphaDUR II
Incoming goods inspection. Hardness testing of metals in production. Testing of machine parts, weld seams, coatings and hardened parts even at difficult to access locations and at any angle
- Fast and easy hardness testing
- Clear user interface with function keys
- Measuring method according to DIN 50159 and ASTM A1038
- Robust metal casing
- Individual material calibrations
- Extensive storage and statistical functions
- Applicable for automated measurements
The alphaDUR II has proved its worth as a reliable and versatile hardness tester since many years. It can be employed from simple manual measurements to fully automated production testing.
The operation of the alphaDUR II is very easy because all information is shown on the large display. Hardness scale and material can quickly be changed by context-sensitive function keys.
Measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 1 and 10 kg can be chosen depending on the application and the sample surface.
| Hardness scale |
HRC, HV, HB, HRB and tensile strength |
| Test load |
10, 20, 30, 49 or 98 N, depending on the UCI probe |
| Display |
Colour LCD 320 x 240 pixels |
| Interface |
USB-Host, USB-Device, RS232 |
| Data memory |
500,000 data records with date, time and GOOD/BAD rating |
| Statistics |
Average value, minimum, maximum, standard deviation |
| Battery |
Built-in NiMH battery, battery life approx. 7 h, rechargeable by power supply / battery charger 100 - 240 V AC |
| Dimensions |
8" x 6 1/4" x 3" (198 x 160 x 78 mm) |
| Weight |
Device 50oz (1400 g), Probe 8oz (190 g) |
| Minimum sample thickness |
Approx. 5 mm (depends on the dimension and the shape of the sample) |
- Basic device with built-in battery
- Probe (3N, 10N, 20N, 30N, 49N or 98N) with connection cable
- USB charging adapter
- Aluminium case
- Manufacturer certificate
- Manual
 download PDF
|
