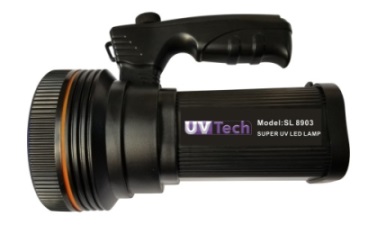

SUPER UV LED LAMP SL8903 Series
Super UV LED LAMP SL8903 Series adapts the most advanced LED cold light source technology, they uses Nichia 5 Watt 365nm of NCSU033B(T) and Optical lenses.
The LED life is 30,000 hours. UV-A Intensity is 4000-13000UW/cm2 in 38cm Distance. Ergonomic design reduces the operator stress,
3x SPOT 365 nm UV led with reflection mirror universal module design for AC and DC operation simple operation
SPECIFICATIONS:
Model: SUPER UV LED LAMP SL8903 Series,;SL8903-Standard Version; SL8903-Aerospace RRES90061 Abbreviation:SL8903-S;SL8903-AR
Peak-Wavelength:365-370NM;
Number of UV LEDs: 3 x 5W 365NM UV LED with lens, average LED life is 30,000 hours
UV Intensity:4000-13000 UW/cm2 at 15inch(380mm) -See the list;
Low visible light emission :less than 2 foot-candles (22 lux)
Power supply: 100-240 universal chargers AC/50HZ; Polymer battery pack DC.
Irradiated Area in 38cm Distance: 5” x 6.25” / 130-160mm (Diameter)
Stability of UV Intensity: > 90%
Product Size: 7.75” x 6” x 4” / 196x150x98mm
Weight: 22oz / 630g without accessories
Compare Specifications:-
|
Model
|
SL8903-S
|
SL8903-AR
|
|
Number of UV LEDs
|
3 x 5W 365NM UV LED
|
|
UV Intensity at 15inch(380mm)
|
13000uw/cm2
|
4000uw/cm2
|
|
Visible light emission
|
Less than 2 FC
|
< 0.5 FC(5 lux) with white light filters Meets ASTM E3022 and RRES 90061
|
|
Irradiated Area at 15” / 38cm Distance
|
130 mm(Diameter)
|
160 mm(Diameter)
|
|
Power supply
|
Polymer battery pack DC
|
|
Suitable for industry
|
All Aeronautics NDT
|
Except Aeronautics NDT
|
FEATURES:
1. 5W 365NM NICHIA True 365 nm wavelength UV light;
2. Less than 2 FC Candles of white Light;
3 .Instant On/Off, no warm up or cooling down time;
4. No filter or bulbs to replace; Mercury free;
5. 100% solid state cold ensures working properly in strong magnetic field.
STANDARD PACKAGE INCLUDING:
SUPER UV LED LAMP SL8903, carry case;
|
